Cat6 vs Cat6A Cable Performance: Understanding NEXT, PS NEXT and Return Loss

When choosing Ethernet cables for structured cabling projects, many buyers only compare the cable category, conductor material or price. However, for professional network installations, especially in data centers, office LAN systems, CCTV networks and PoE applications, electrical performance parameters are just as important.

Among these parameters, NEXT, PS NEXT and Return Loss are key indicators that help determine whether a cable can support stable high-speed transmission.

What Is NEXT in Ethernet Cable?

NEXT stands for Near-End Crosstalk. It measures the unwanted signal interference between twisted pairs at the same end of the cable.

In simple terms, when one pair transmits data, part of the signal may interfere with another pair. Better NEXT performance means less interference and cleaner signal transmission.

For Cat6 and Cat6A cables, NEXT performance becomes more important as the frequency increases. High-frequency transmission requires better pair twisting, stable cable structure and precise manufacturing control.

What Is PS NEXT?

PS NEXT means Power Sum Near-End Crosstalk. Unlike NEXT, which measures interference between two pairs, PS NEXT considers the combined interference from multiple pairs.

This is especially important for modern network applications where all four pairs may be used at the same time, such as Gigabit Ethernet, 10G networks and PoE systems.

Better PS NEXT performance helps improve:

• Signal stability

• Anti-interference capability

• High-speed data transmission

• Network reliability in dense cabling environments

For data centers, smart buildings and enterprise networks, PS NEXT is one of the key indicators that should not be ignored.

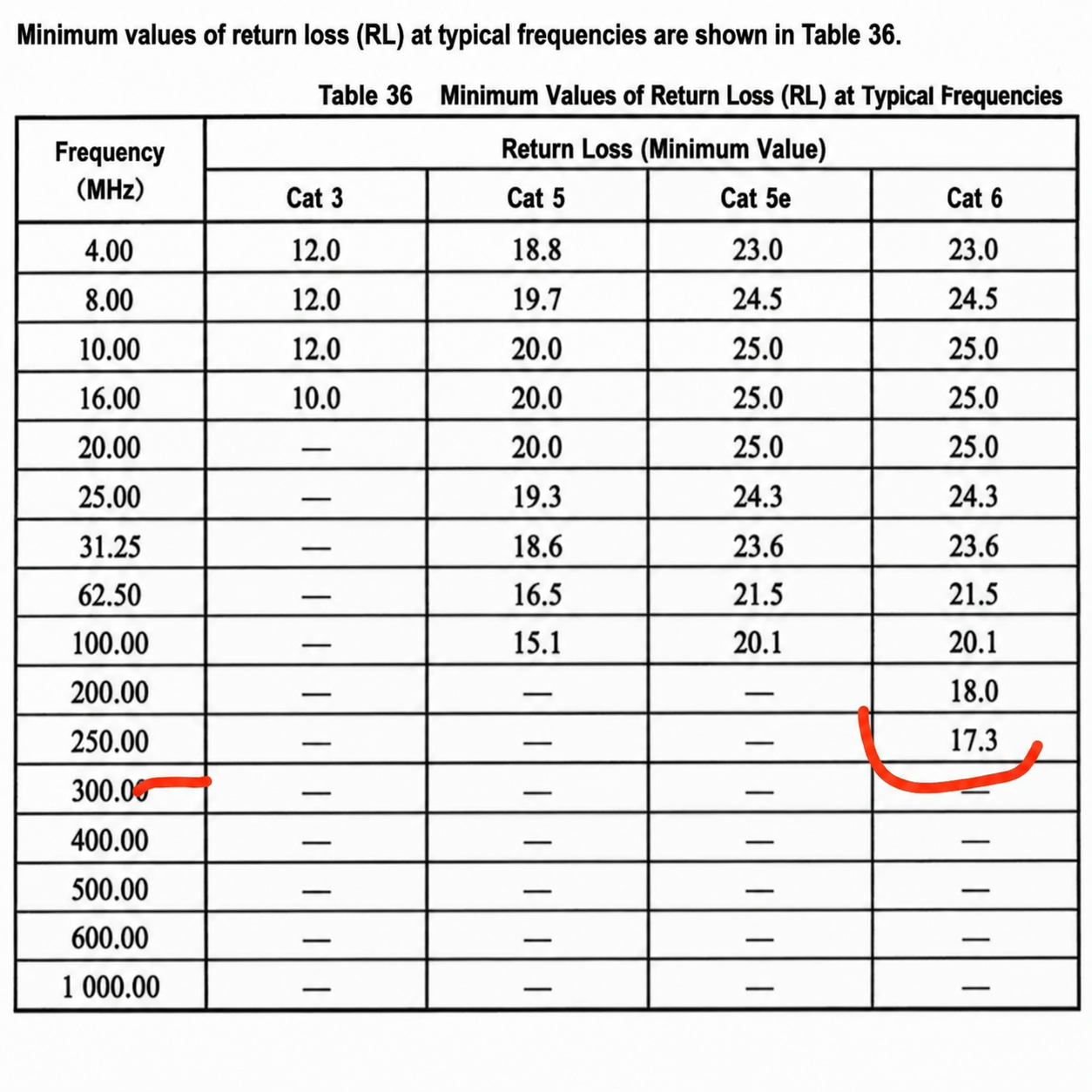

What Is Return Loss?

Return Loss, also called RL, measures how much signal is reflected back due to impedance mismatch inside the cable.

A higher return loss value usually means better impedance consistency and less signal reflection.

Poor return loss may cause:

• Signal distortion

• Transmission instability

• Packet loss

• Reduced network performance

• Unstable PoE or IP camera operation

For high-speed Ethernet systems, stable return loss performance is essential for maintaining reliable data transmission.

Why Cat6A Performs Better at Higher Frequencies

Cat6 cable is commonly used for Gigabit Ethernet and supports transmission frequencies up to 250 MHz. It is widely used in office networks, CCTV systems, smart buildings and general structured cabling projects.

Cat6A cable is designed for higher-performance applications and supports transmission frequencies up to 500 MHz. Compared with Cat6, Cat6A offers stronger anti-crosstalk performance and better long-term support for 10G Ethernet.

This makes Cat6A more suitable for:

• Data centers

• 10G network upgrades

• High-density cabling

• PoE and PoE++ systems

• Smart building infrastructure

• Enterprise backbone cabling

• High-definition CCTV and security systems

Cat6 or Cat6A: Which One Should You Choose?

The right choice depends on the project application.

Cat6 is a cost-effective solution for standard LAN, CCTV and PoE projects. It is suitable for many office, commercial and security installations.

Cat6A is recommended when the project requires higher bandwidth, stronger anti-interference performance, long-term network upgrade capability or 10G transmission.

For contractors and system integrators, Cat6A is often a better choice for future-proof cabling, especially when the project involves data centers, high-density racks or smart building systems.

Cable Quality Is More Than the Category Name

Not all Cat6 or Cat6A cables perform the same. The actual performance depends on several factors:

• Conductor material

• Conductor diameter

• Twisting pitch

• Pair separation design

• Shielding structure

• Jacket material

• Manufacturing process

• Testing standards

For stable network performance, it is important to choose cables from a reliable manufacturer with strict production control and testing capability.
