BV Vs BVR Vs RV Cable – Complete Comparison Guide (with Visuals)

Overview: What is the Difference?

In low-voltage electrical wiring systems, BV, BVR, and RV cables are the three most commonly used PVC insulated copper conductors.
Although they look similar in structure, they are designed for different installation environments and flexibility requirements.

This guide helps you quickly understand their differences in structure, application, and performance.

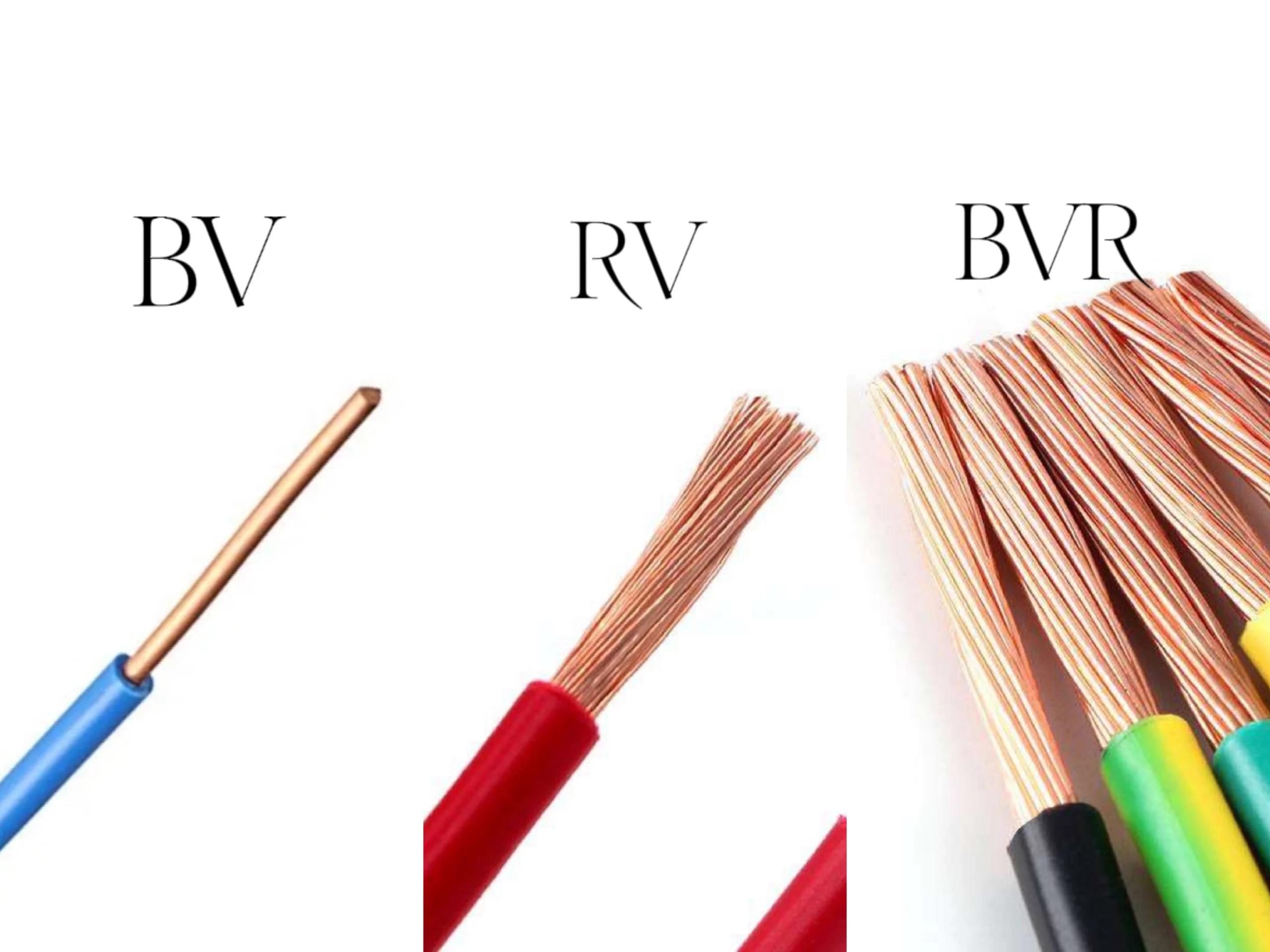

1. Basic Structure Comparison

BV Cable (Solid Wire)

• Single solid copper conductor

• PVC insulation

• Hard structure, low flexibility

• Best for fixed and straight wiring

BVR Cable (Flexible Stranded Wire)

• Multi-stranded annealed copper conductor

• PVC insulation

• Medium flexibility

• Designed for easier installation in distribution boxes

RV Cable (Extra Flexible Wire)

• Ultra fine multi-stranded copper

• Softest structure among the three

• High flexibility, easy bending

• Suitable for dynamic or tight wiring spaces

⚡ 2. Flexibility & Installation Comparison

️ 3. Application Scenarios

BV Cable Applications

• Fixed building wiring

• Wall concealed installation

• Straight-line power distribution

BVR Cable Applications

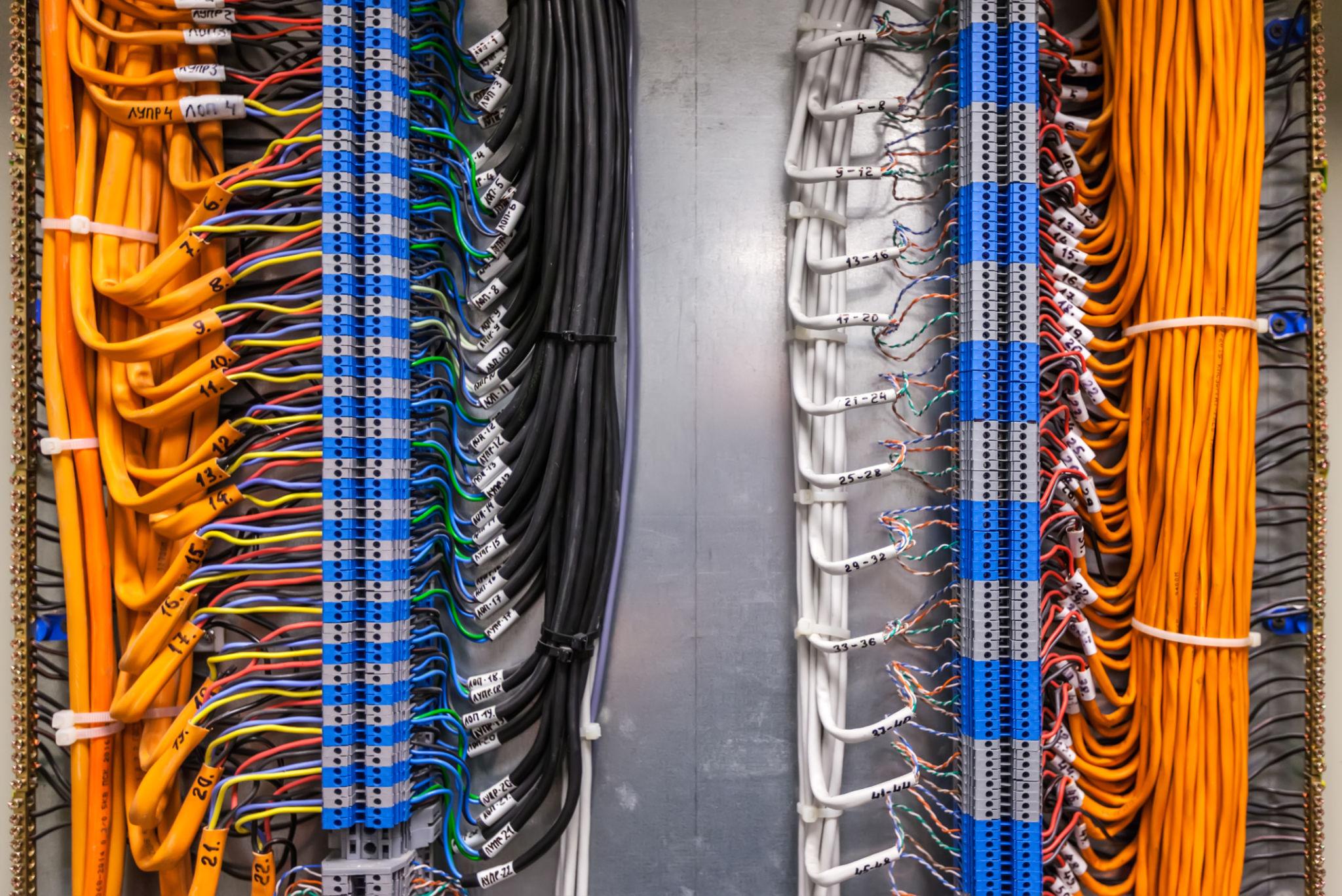

• Control cabinets

• Switchboards

• Industrial distribution systems

• General building wiring

RV Cable Applications

• Electrical appliances

• Flexible internal wiring

• Small space installations

• Equipment connections requiring movement

4. Electrical Performance Comparison

5. How to Choose the Right Cable?

✔ Choose BV if:

• You need fixed, stable wiring

• Installation is straight and permanent

✔ Choose BVR if:

• You need balance between flexibility and cost

• You are wiring distribution boxes or panels

✔ Choose RV if:

• You need high flexibility

• Wiring space is tight or frequently moved

Why This Matters in Real Projects

Using the correct cable type improves:

• Installation speed ⚡

• Electrical safety

• Long-term stability

• Maintenance cost reduction

In engineering projects, choosing between BV, BVR, and RV is not just technical—it directly affects project efficiency.
