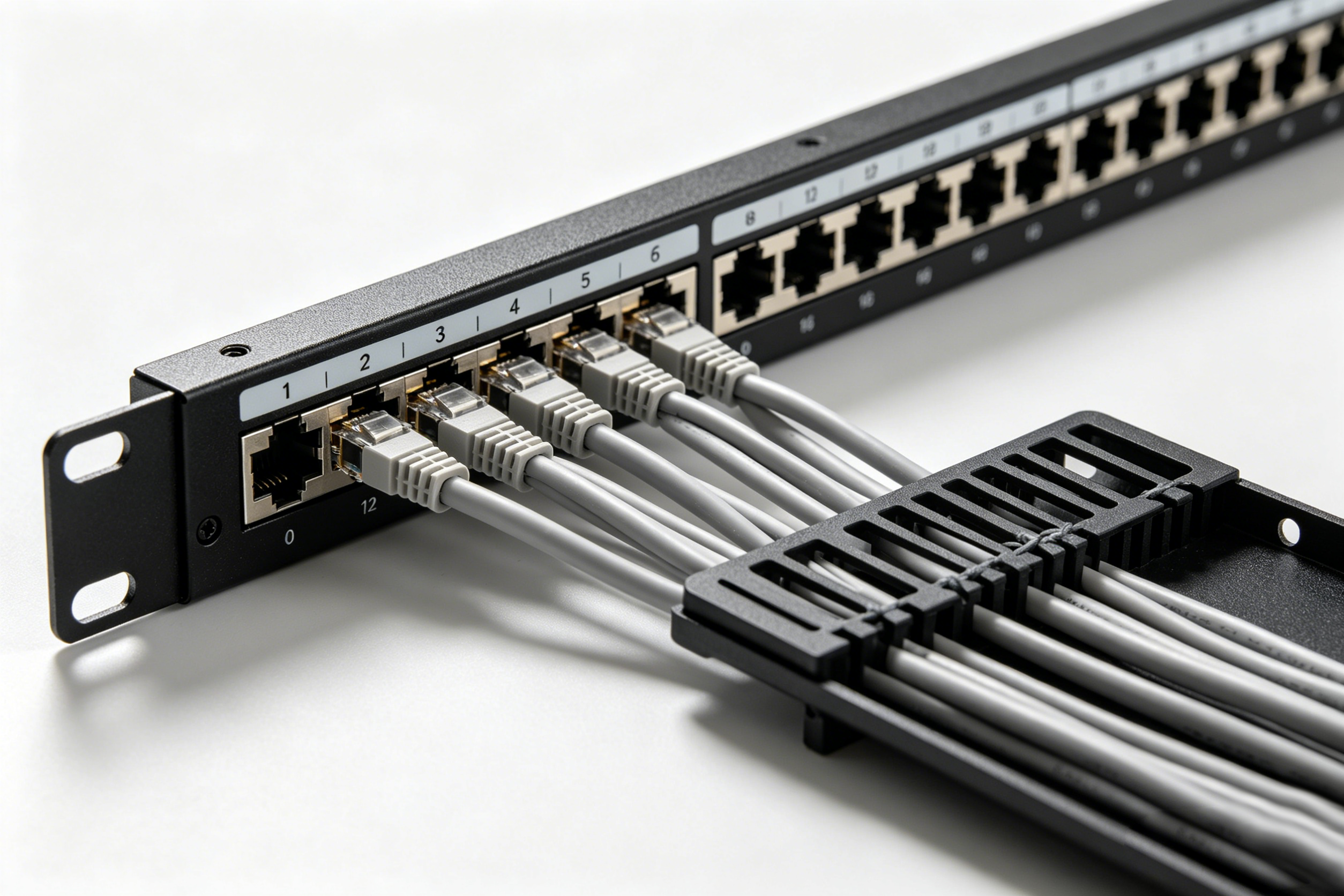

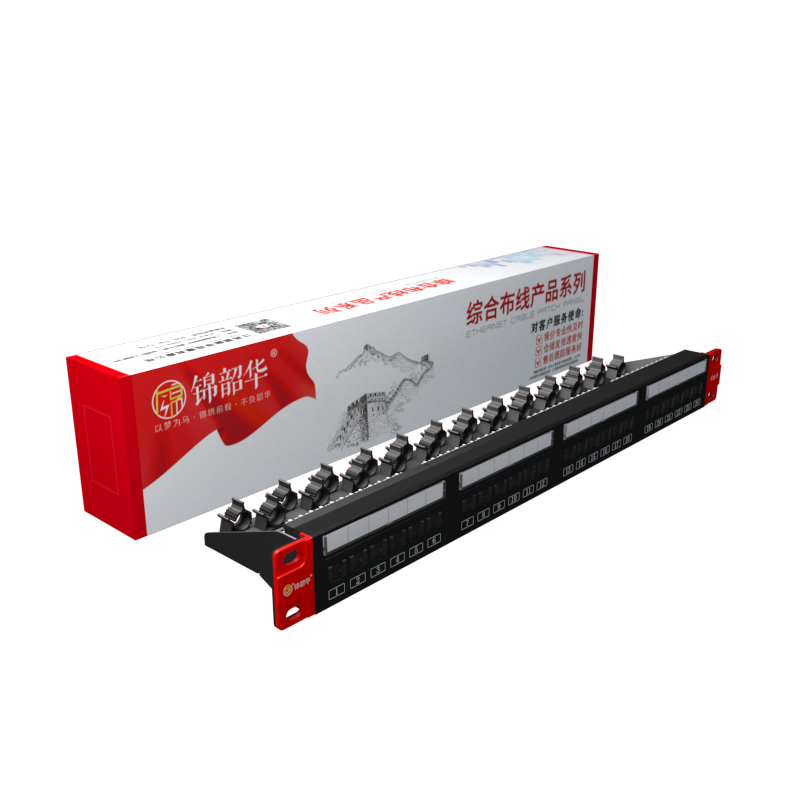

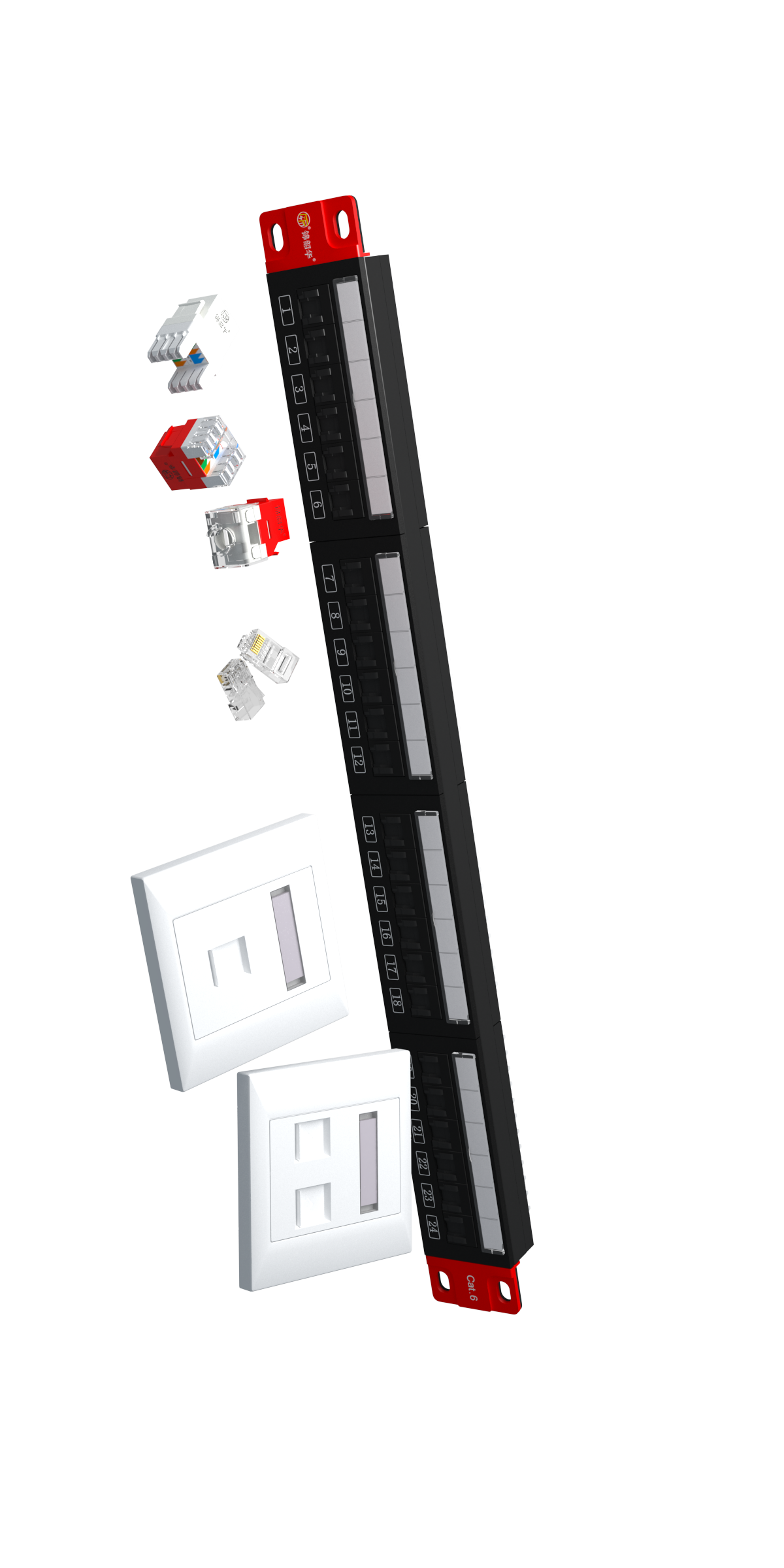

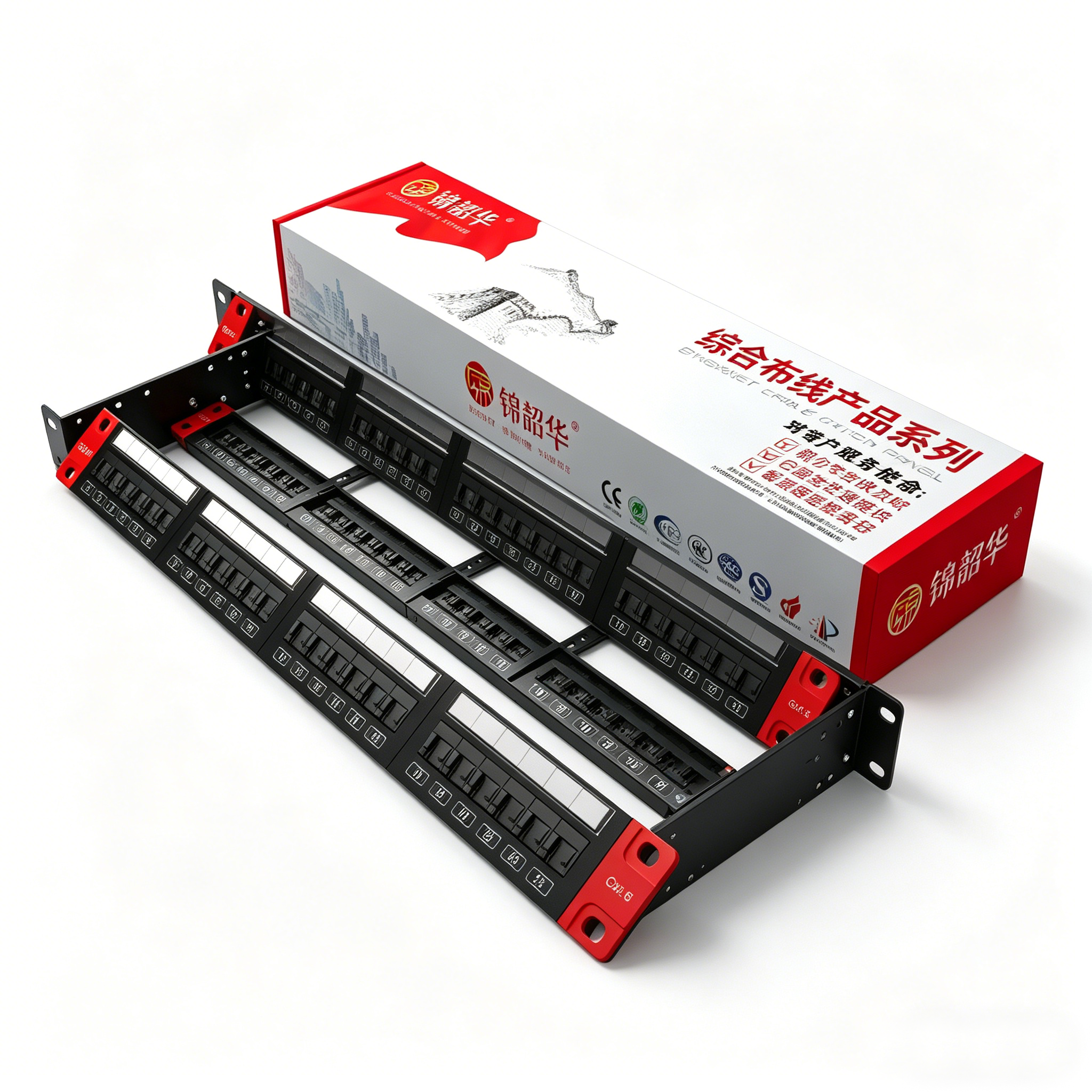

Product OverviewThe Network Patch Panel is a high-performance solution for structured cabling in data centers, offices, and commercial LAN installations. Compatible with Cat5e and Cat6 cables, it features gold-plated contacts for stable, low-resistance connectivity and rack-mount design for professional installations. Available in 12, 24, and 48-port options, it ensures efficient cable management, reduces clutter, and supports high-speed network transmission for Ethernet, VoIP, and PoE applications. Key Features: · Supports both Cat5e and Cat6 structured cabling standards · Gold-plated contacts for corrosion-free, low-resistance connectivity · Multiple port configurations: 12, 24, 48 · Standard 19-inch rack-mountable design · Integrated cable management and labeling for neat and organized installations |  |
Material & Construction:

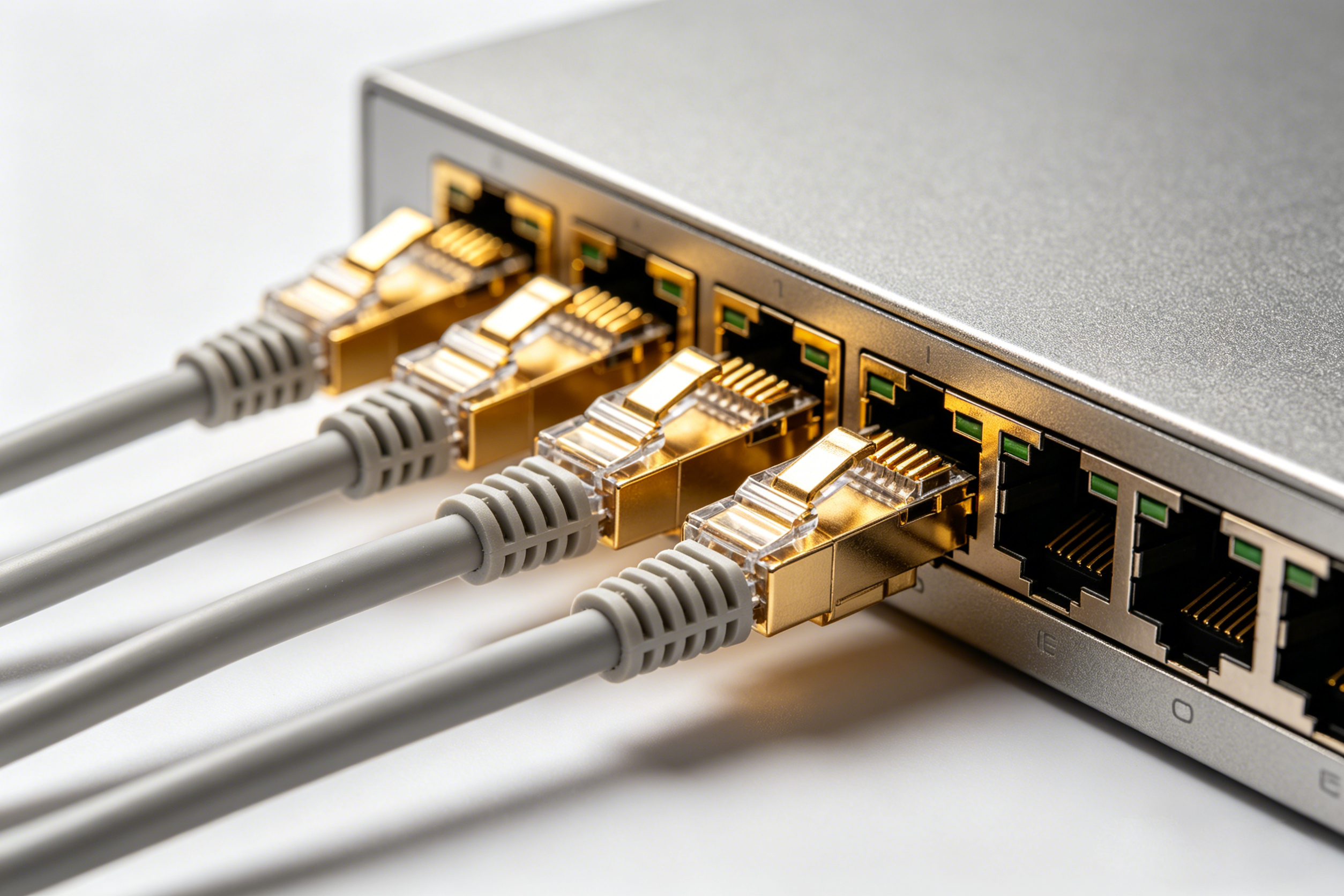

· Contacts: High-quality gold-plated terminals provide reliable connectivity and prevent signal degradation.
· Panel Body: Rugged steel housing with powder-coated finish, resistant to wear and mechanical stress.

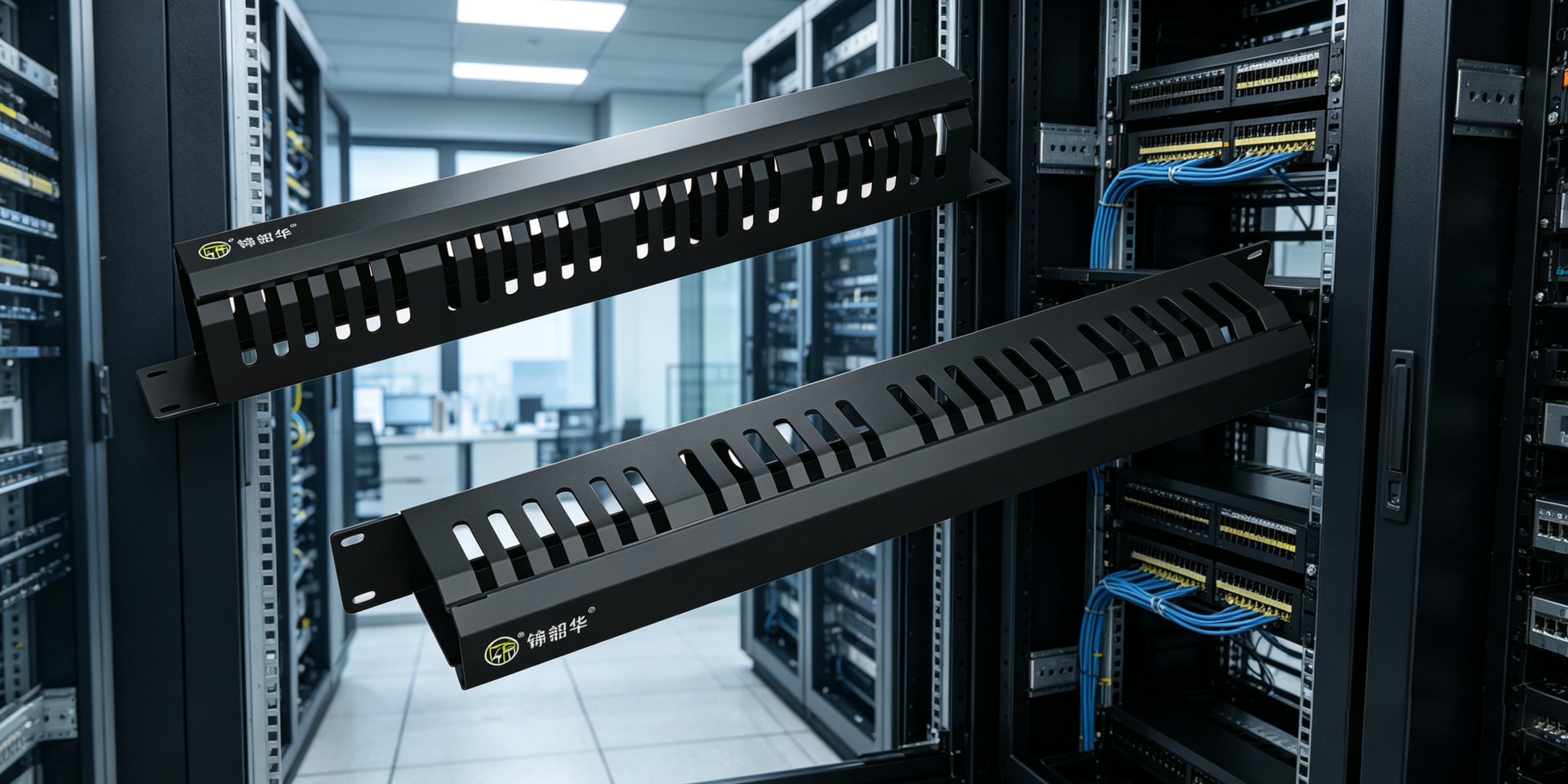

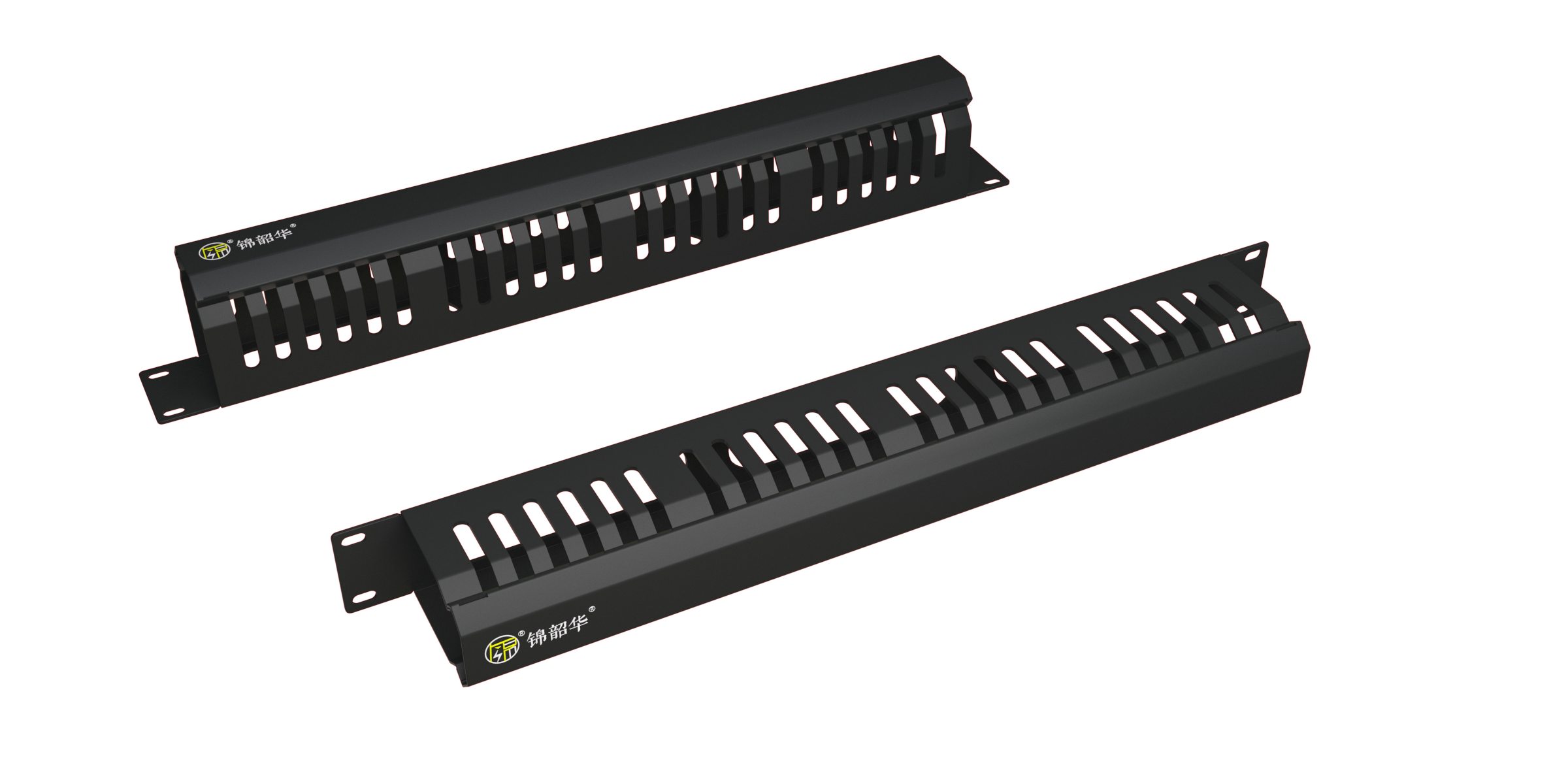

· Cable Management: Rear cable organizer and tie points for structured and organized wiring.
· Port Options: 12, 24, or 48 ports to meet various network requirements.
 |  |  |
Reliable Data Transmission: * Gold-plated contacts ensure consistent signal integrity, suitable for high-speed Ethernet networks. * Compliant with Cat5e and Cat6 standards, supporting gigabit LAN and PoE applications. | 1. Efficient Cable Management: * Labeled ports and rear organizer simplify installation, maintenance, and troubleshooting. * Reduces clutter, crosstalk, and electromagnetic interference in dense network setups. | Durability & Versatility: * 19-inch standard rack mount fits cabinets, walls, or desk-mounted network setups. * Sturdy metal construction ensures long-term reliability and protection against mechanical damage. |
Applications:
· Data centers and server rooms
· Office LAN structured cabling
· Telecommunications and network installations
Residential and commercial Ethernet projects
Specifications:
| Parameter | Specification |
| Port Number | 12 / 24 / 48 |
| Supported Cable | Cat5e / Cat6 |
| Contacts | Gold-plated for high conductivity |
| Panel Material | Steel, powder-coated |

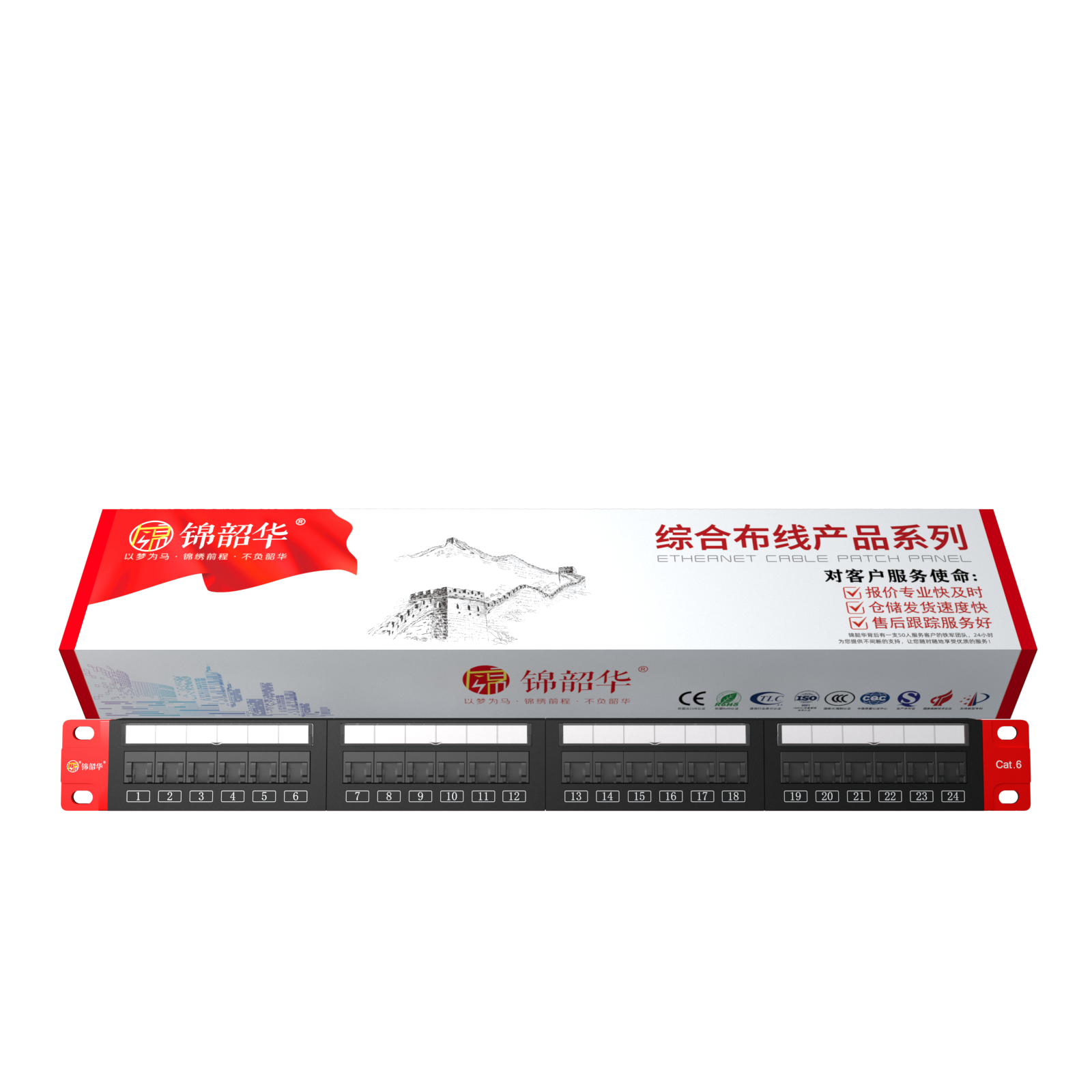

| Mount Type | 19-inch rack mount |
| Cable Management | Rear organizer with tie points |
| Standard Compliance | TIA/EIA 568A/B |
Factory Commitment & Service:
· Each panel is tested for port integrity and continuity.
· High-quality materials guarantee long-term stability and reliable network performance.
· Sufficient stock for fast delivery; professional B2B support for bulk orders and technical guidance.
 |
Applicable Environments Designed for installation in standard 19-inch server racks and cabinets, the patch panel is suitable for use in data centers, office buildings, educational institutions, hospitals, industrial facilities, and smart building infrastructures. It supports high-speed network deployments requiring stable and scalable connections. |

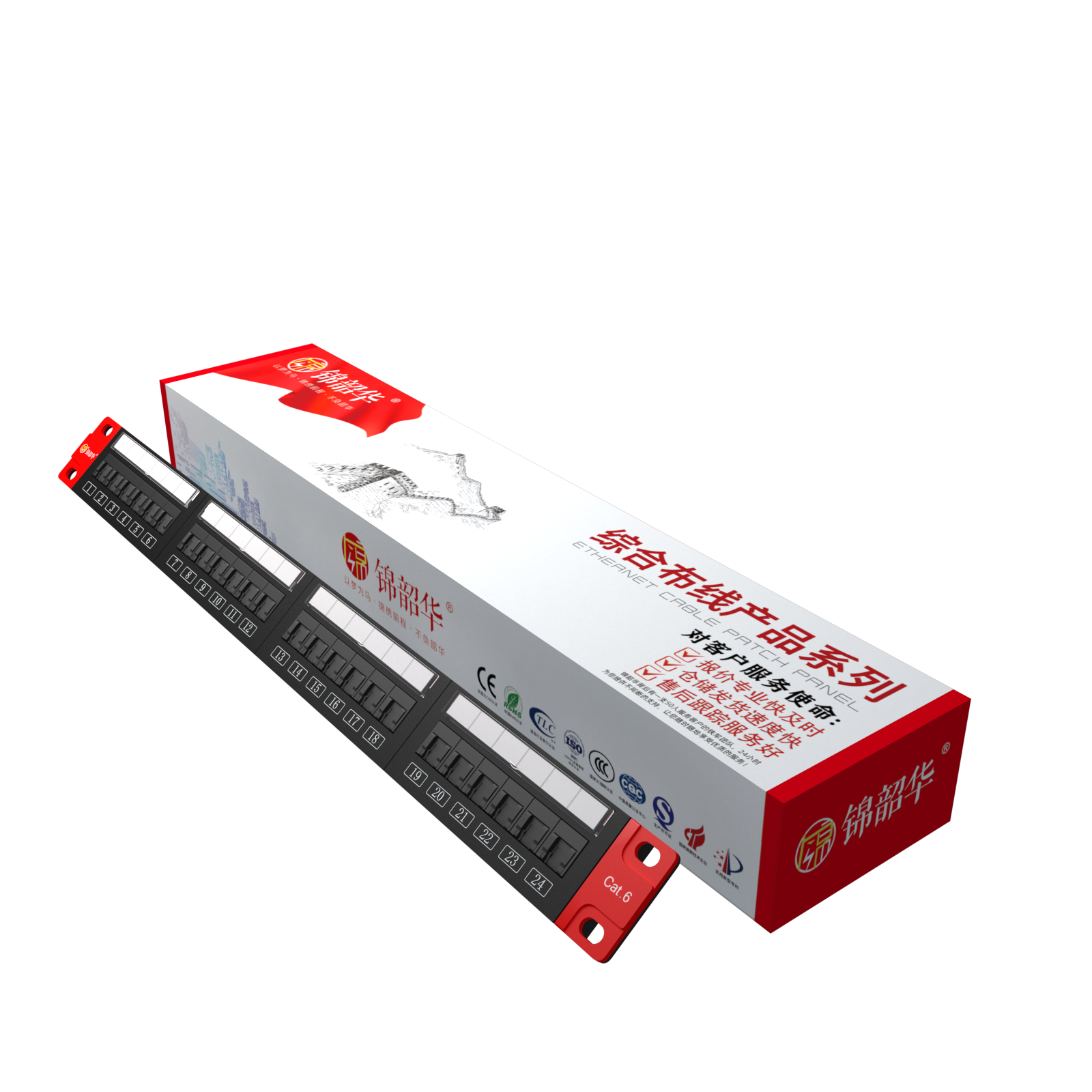

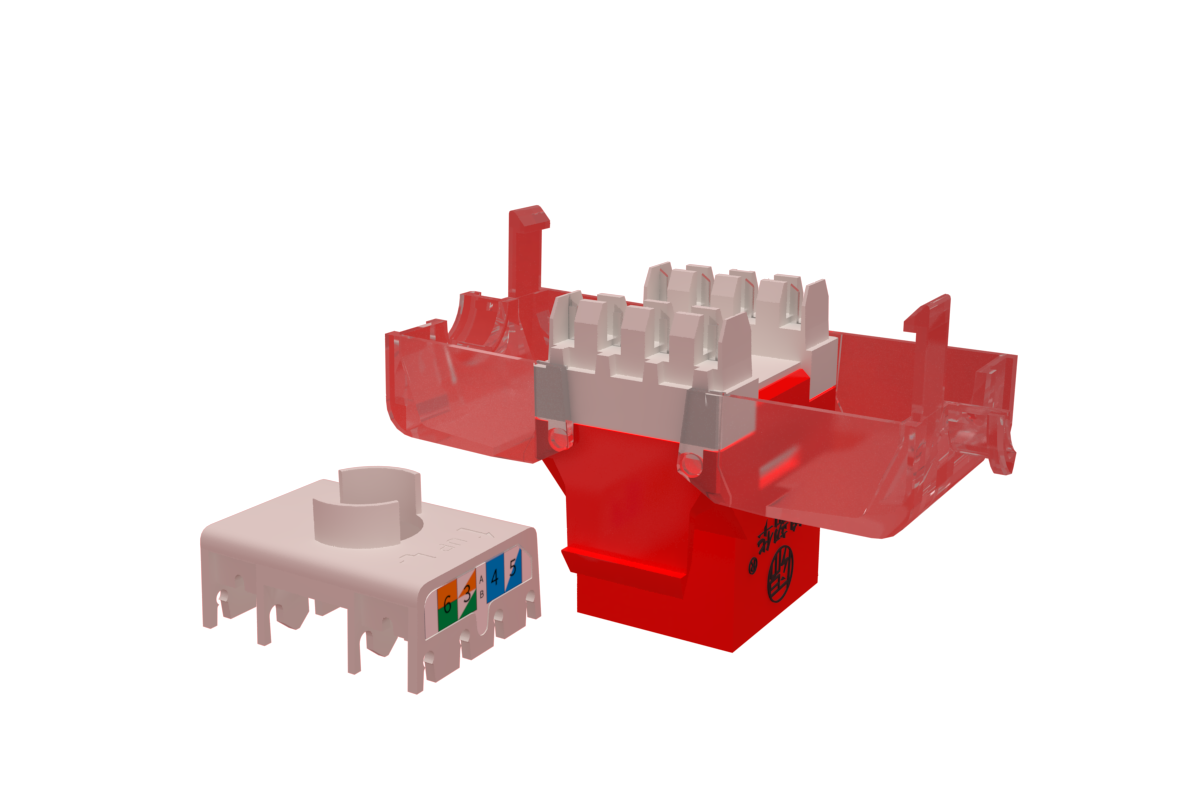

Equipment Configuration Constructed from high-quality cold-rolled steel, the patch panel offers excellent structural strength and long-term durability, ensuring stable performance in demanding network environments. The standard 19-inch rack-mount design allows seamless integration into server racks and network cabinets, providing efficient space utilization and secure installation. Equipped with gold-plated RJ45 contacts, the panel ensures superior conductivity, reduced signal loss, and enhanced resistance to corrosion, guaranteeing reliable data transmission for high-speed Ethernet networks. The rear side features clearly labeled IDC punch-down terminals compatible with both T568A and T568B wiring standards, enabling quick and accurate cable termination. An integrated cable management bar helps organize incoming cables, reduces strain on terminations, and maintains a clean and professional network infrastructure. |  |
 |
Quality & Reliability Assurance Each network patch panel is manufactured under strict quality control standards to ensure consistent performance and long-term stability in professional networking environments. High-precision stamping and assembly processes guarantee accurate port alignment and secure structural integrity. All RJ45 contact points are engineered with high-quality materials to ensure stable signal transmission and excellent resistance to wear and corrosion, making the product suitable for continuous operation in high-density network systems. Designed for mission-critical applications, the product ensures reliable connectivity, efficient cable organization, and long service life in enterprise-level structured cabling projects. |
